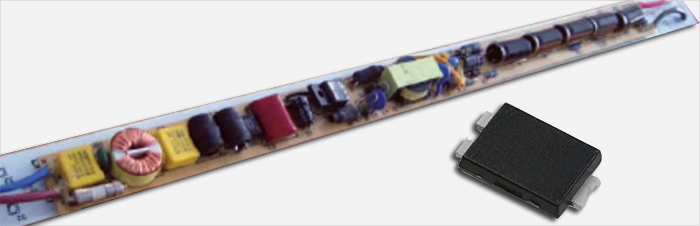

SS10PU200S on LED application
Use in low voltage, high frequency inverters, freewheeling and polarity protection.

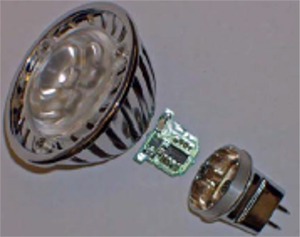

Ideal for all LED lighting applications.
TO-277, SMD package, thickness 1mm
VF@5A typical 0.66V
IR@45V < 10uA
| Electrical characteristies(Tc=25℃ unless otherwise noted) | ||||
| Parameter | Symbol | Value | Unit | |
| Typical | Max | |||
| Instantaneous forward voltage | VF | V | ||
| at IF=5A,Tj=25℃ | 0.66 | 0.71 | ||
| at IF=10A,Tj=25℃ | 0.72 | 0.77 | ||
| at IF=5A,Tj=125℃ | 0.62 | 0.67 | ||
| at IF=10A,Tj=125℃ | 0.71 | 0.78 | ||
| Maximum reverse current per leg | IR | 10 | u'A | |
| Tj=25℃ | ||||
| at working peak reverse voltage Tj=25℃ | 2 | m'A | ||
