BW73series LED Illumination Solution

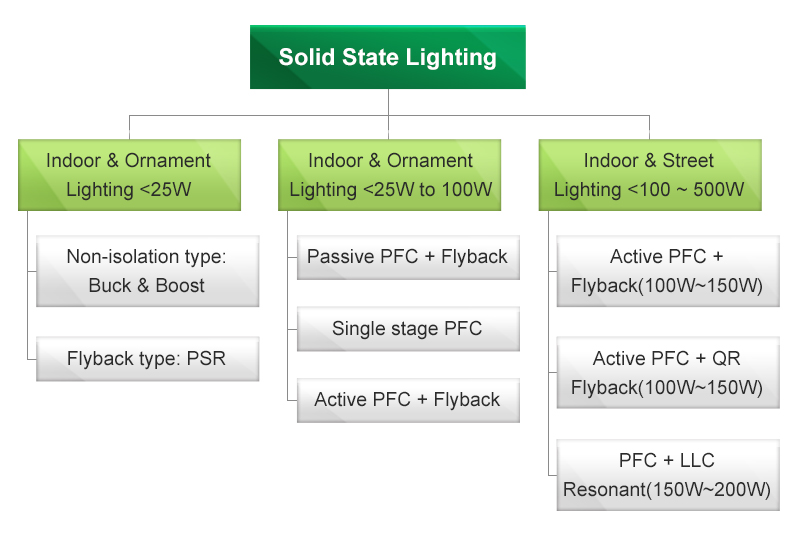

LED product topology
- DC-DC technology platform, including topology of BUCK, BOOST, BUCK-BOOST
- AC-DC technology platform, including topology of flyback (SSR/PSR), forward, LLC etc.
- PFC technology platform, including PSR+PFC
LED Driver Solution
| Output Power max (W) |
PFC | Constant Current (+/-) |
Topology | Operation Mode |
Universal | MOSFET | Dimming | Package | Note | |
| BW7383 | 30W | >0.9 | 2% | Buck | BCM | Y | N | N | SOT-26 | |
| BW7385 | 30W | >0.9 | 2% | Buck | BCM | Y | N | N | SOT-26 | THD and Efficiency ADJ by external Resistor |
| BW7373 | 60W | >0.9 | 2% | PSR | BCM | Y | N | N | SOT-26 | Adjustable Start-up time |

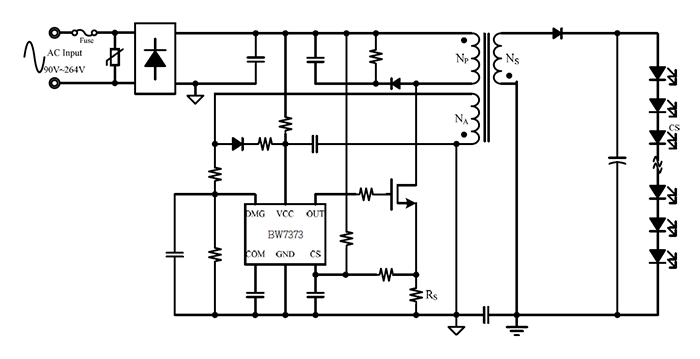

LED Driver Solution BW7373
6 PIN Primary-side current control IC with High PFC
FEATURES
- Universal 90VAC to 264VAC Input Range
- Adjustable start-up time by Rstr without OVP issue
- Low THD operation by BCM mode
- LED current accuracy without thermal issue
- Open-LED Protection on DMG pin
- Over-Voltage Protection on VCC pin
- Over-Temperature Protection
- Short-LED Protection
- Cycle by Cycle Over current protection on CS pin
Non-ISO LED Driver/ Active PFC BW7383/ BW7385

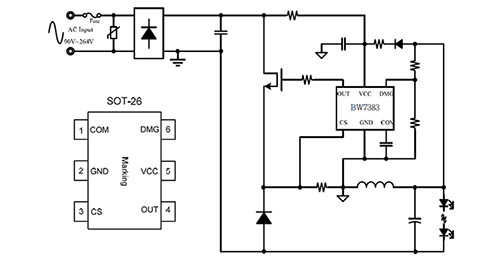

BW7383 Universal Non-ISO LED Driver with Active PFC (Buck)
FEATURES
- Universal 90VAC to 264VAC Input Range
- Low BOM Cost
- SOT26 Package Available
- LED Open Protection (OVP)
- Over Current Protection(OCP)
- Over-Temperature Protection
- Short-LED Protection
- Good Line and Load Regulation
- High efficiency by BCM mode
Active PFCUniversal and BCM Mode

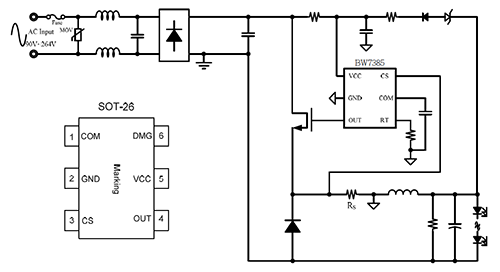

BW7385 THD Adjustable LED Driver with Active PFC (Buck)
BW7383 Universal Non-ISO LED Driver with Active PFC (Buck)
FEATURES
- THD and Efficiency adjustable by RT Pin
- Low THD <15% (ADJ)
- Low BOM Cost (DR Code Inductor)
- High power factor (>0.9)
- Over Current Protection(OCP)
- Over-Temperature Protection
- LED Short Protection(SCP)
- Good Line and Load Regulation
- Boundary Current Mode Control
Low THD<15% (ADJ) Low BOM Cost DR Code Inductor
