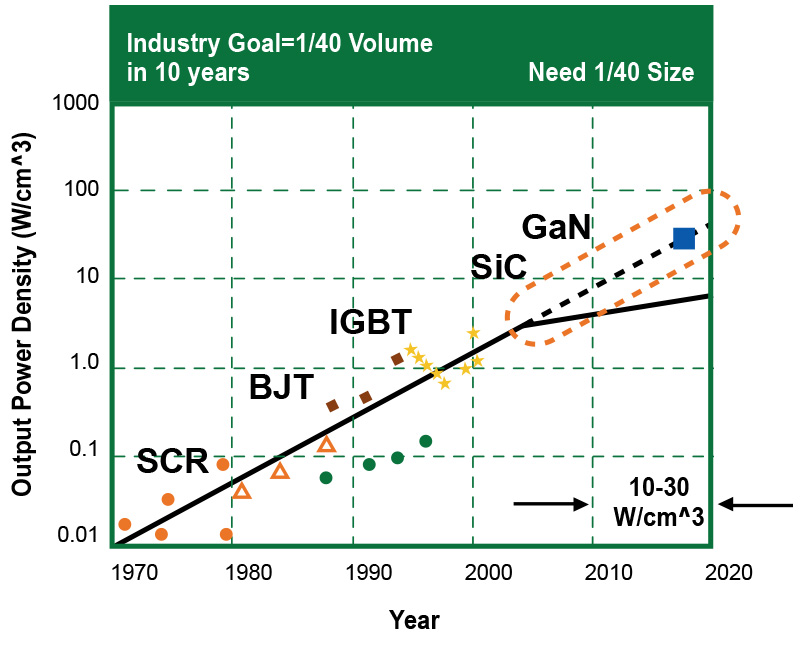

Industry Power Density Roadmap

Silicon has provided us the pathway for power conversion solution for several now reached its physical limits GaN and SiC open new possibilities.

-for high performance market released as Schottky diode, JFET and MOSFET Target application by 1200V
GaN on Si
-high performance solution with low cost for diodes and transistors
GaN on SiC
-high cost solution for high performance with reduce sensitivity to cost
GaN on GaN
-Early stage of development
Gallium Oxide
-Very early stage
-Out there

In the recent decades, the Silicon carbide (SiC), turned out to be an excellent semiconductor material. Composed of carbon and silicon, and used in power applications in which it showed excellent performance, far superior to those of silicon.

Significant progress has been made in the field of the semiconductor industry, in which the technologies for the processing of silicon carbide have become increasingly more sophisticated, and have produced semiconductor devices with excellent performance.

In the facts those devices during the applications have shown a remarkable capacity to reduce losses and a high switching speed in comparison to that offered by silicon. The use of silicon carbide (SiC) as a semiconductor begins to expand into multiple applications and always proves to be more and more the candidate to replace silicon in the most important applications such as automotive and E-Bike motor control.

For these reasons, Bruckewell Semi decided to launch the production of the SiC Products, includign the SiC Schottky Diode and SiC MOSFET, suport the 650V to 1200V, and give the opportunity to its customers to take advantage of the benefits that the products offer in the SiC high-voltage power applications. So we are happy to present our SiC products line.

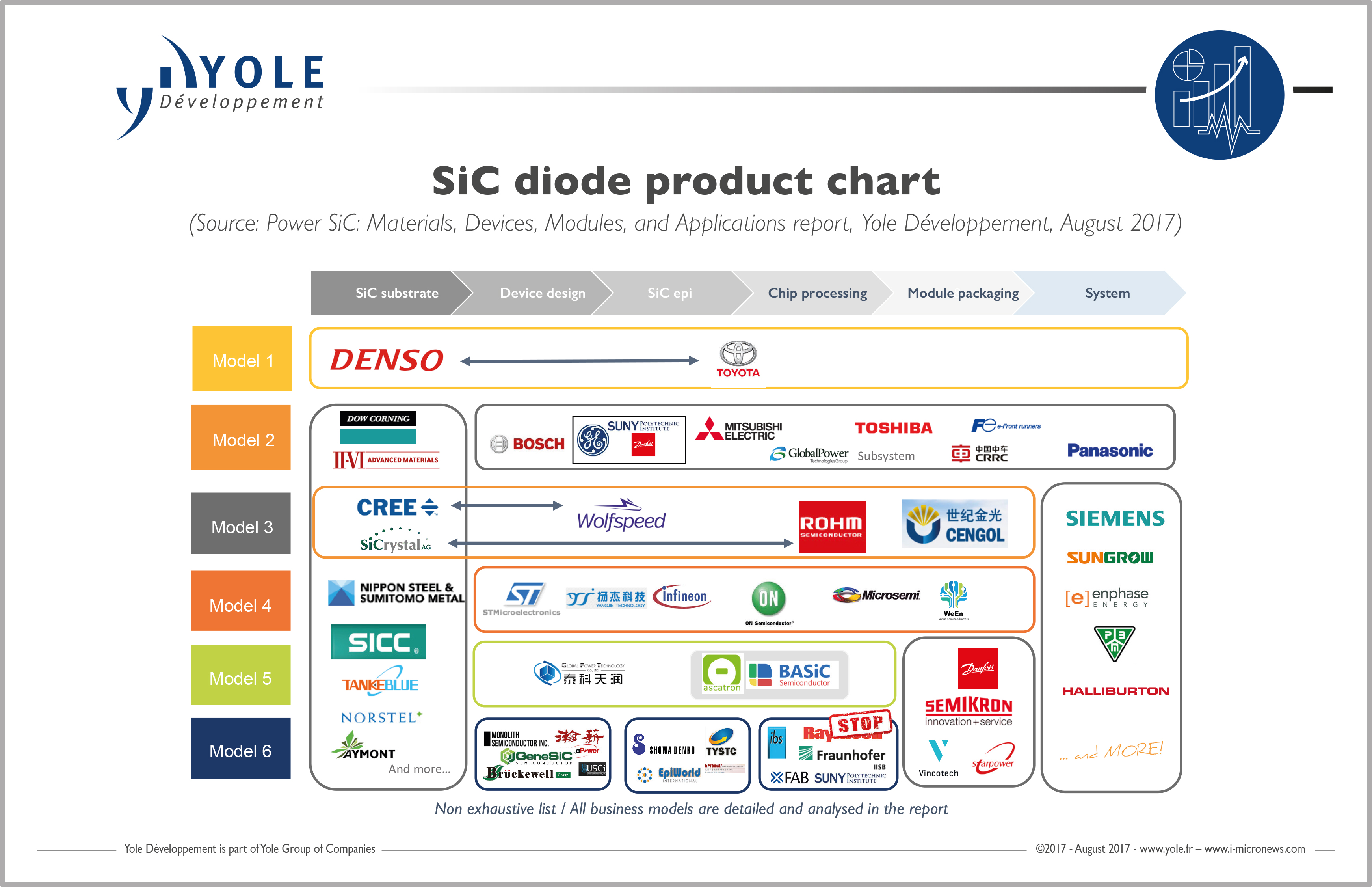

SiC diodes hold 85% market share, but SiC transistors to reach 27% share in 2021, says Yole Développement.

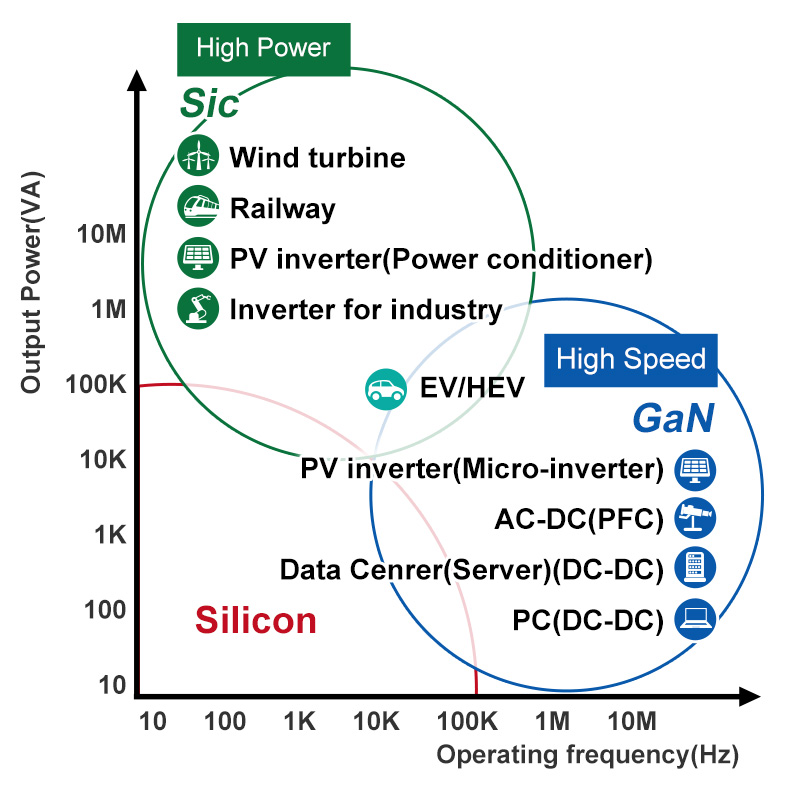

Potential Application of Wide Gap Semiconductors

SiC for high power voltages (>1kV )
with high current

GaN on Si for high frequency at mid-range voltages
( < 1kV, up to 100A)

Promising applications of GaN :
Power supply, PV inverter,
Automobile (Charger, DC-DC)

SiC Power Devices' Hot Applications

SiC devices have been already used in various application because of their superior characteristics over conventional silicon devices

PV inverter

  • Used in boost converter and DC/AC
  • Efficiency improves by 0.5~1.0% with SiC SBD
  • High conversion efficiency, over 98% is achieved with SiC MOSFET

Power supplies
(Air Conditioner, IT servers,EV Charger)

  • Mainly used in PFC circuit
  • Efficiency improves by 0.5~1.5% with SiC SBD
  • Number and size of Passive components reduced
  • Higher efficiency

Industrial equipment

  • Used in boost converter and DC/AC
  • Efficiency improves by 0.5~1.0% with SiC SBD
  • High conversion efficiency, over 98% is achieved with SiC MOSFET

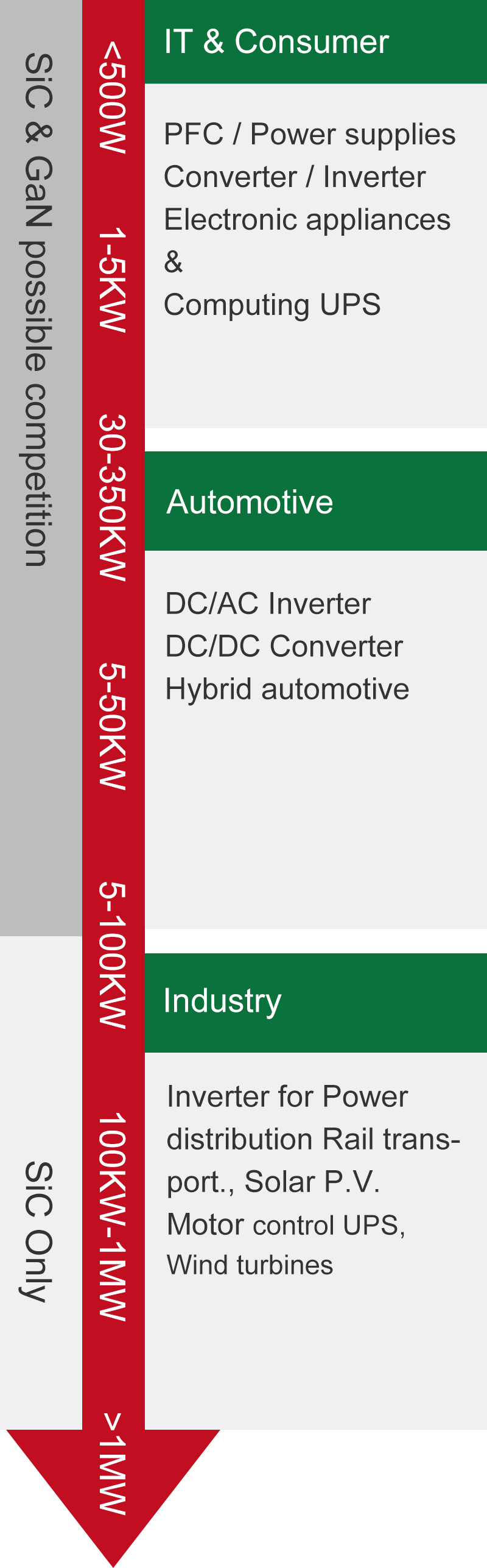

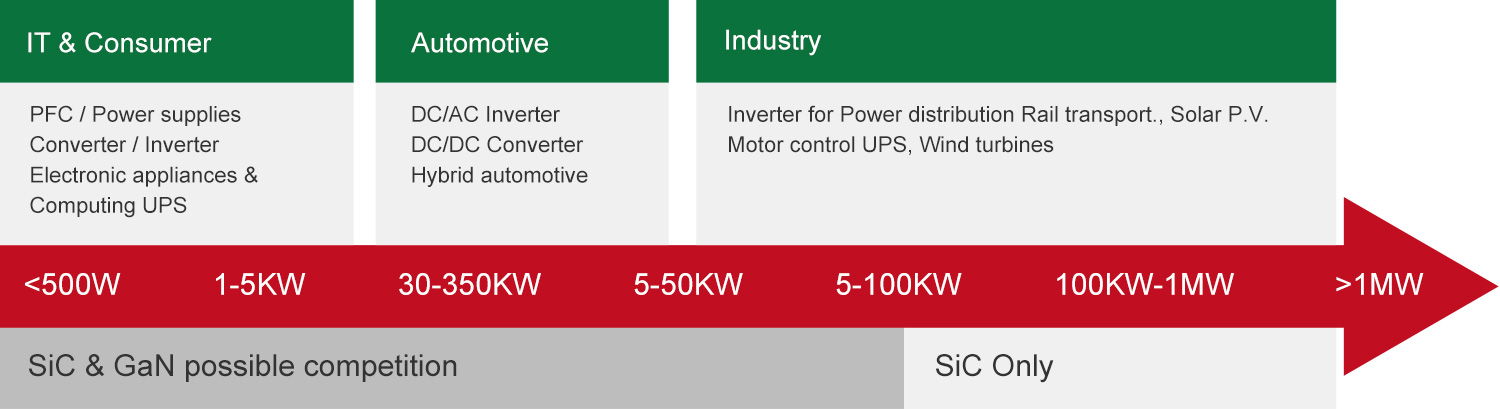

SiC Device applications

Focus on 5K to 100KW, target marketing on converter/ inverter/ motor control, Hybrid-Automotive

Market Analysis
