ESD05CL App
The ESD05CL ESD protection diode is designed for
portable applications such as cell phones, notebook
computers, USB port and Audio.
They feature large cross-sectional area junctions
for conducting high transient currents, offer
desirable electrical characteristics for board level
protection, such as fast response time, lower
operating voltage, lower clamping voltage and no
device degradation

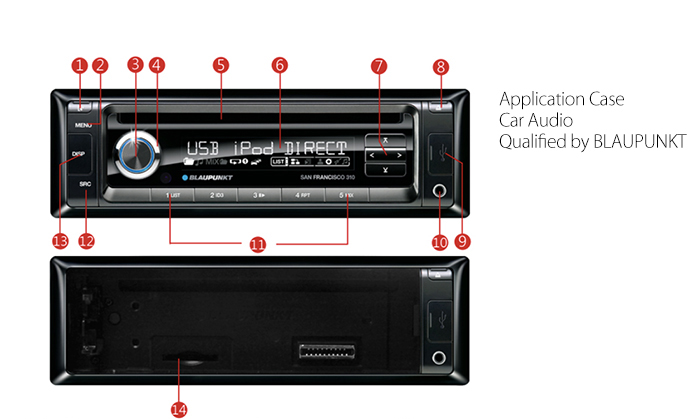

Application :
- Ethernet 10/100/1000 Base T
- SMART Phones
- Handheld - Wireless Systems
- USB Interface
FEATURES :
- Complies with the following standards
- IEC61000-4-2
- Level 4 15 kV (air discharge)
- 8 kV(contact discharge)
- MIL STD 883E - Method 3015-7 Class 3
- 25 kV HBM (Human Body Model)
- Unidirectional & Bidirectional Configuration
- Protects One Power or I/O Port
- Low Clamping Voltage
- Ultra Low Capacitance: 3pF (Typical)
| VBR | IT | VRWM | IR | Cj Typ | |||
| Min (V) | Typ (V) | Max (V) | mA | V | uA | pF | |
| ESD05CL | 6.1 | 6.6 | 7.2 | 1 | 5 | 1 | 3 |
